Top Selling Fully Automatic Screw Fastening Machine Electric Screwdriver Screw Locking Machine
|

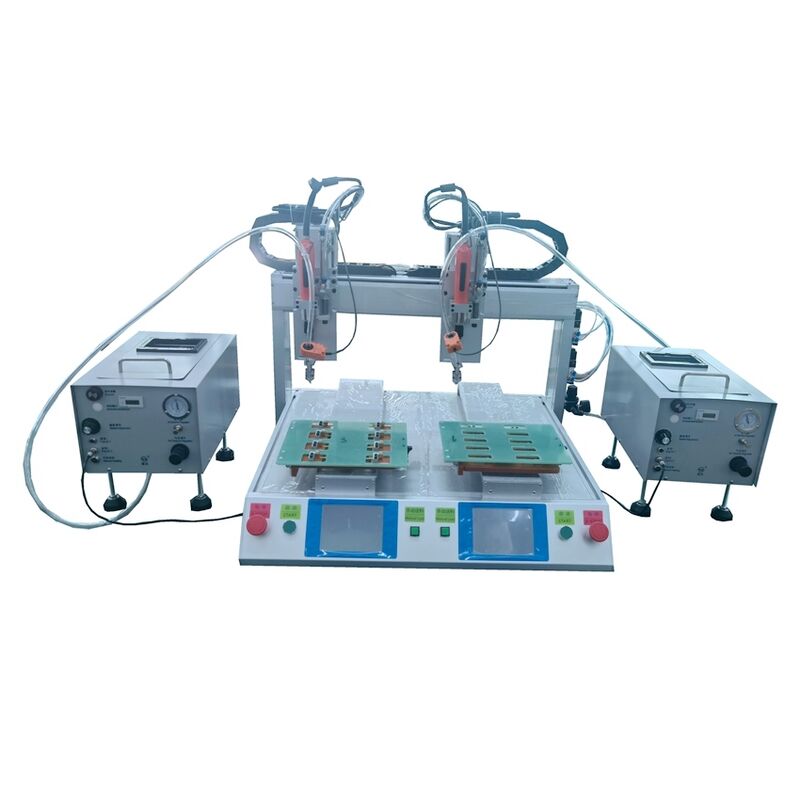

Top Selling Fully Automatic Screw Fastening Machine Electric Screwdriver Screw Locking Machine
| Place of Origin | Guangdong, China |
| Brand Name | Robotsung |
Product Details
Weight (kg):
90
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
Motor
Warranty:
1 Year
Power Source:
Electricity
Working Table:
Two
Power Supply:
AC220/110v,50HZ,360w
Electric Screwdriver Number:
Single
Move Speed:
XYZ Max 500mm/sec
Condition:
New
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Applicable Industries:
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Advertising Company
Showroom Location:
None
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$6,800-6,900 / set
Product Description
Products Description
Advantages
1,High efficiency, the blowing screw directly sends the screw to the batch nozzle, saving the time of taking the screw back and
forth, and the efficiency is higher and more stable.
2,Reduce the labor intensity of workers. Workers only need to pick and place the product and the machine can automatically
complete the screwing, which greatly reduces the labor intensity.
3,Simple operation. The display screen can be operated visually, and the staff can quickly grasp the operation and debugging. One
worker can manage several machines at the same time.
4,Improve product quality: accurate torque, convenient adjustment, and guarantee the quality of locking.
5. Stable performance, with leakage detection function, it will appear that individual screws have not been blown into place at a time, and can continue to blow or alarm processing to reduce product leakage of screws and increase product qualification rate.
Application
Suitable for all types of screws the total length of the screw should be greater than 1.3 times the diameter of the nut. Screws
with a total length of no more than 40mm can be fitted with removable gaskets.
forth, and the efficiency is higher and more stable.
2,Reduce the labor intensity of workers. Workers only need to pick and place the product and the machine can automatically
complete the screwing, which greatly reduces the labor intensity.
3,Simple operation. The display screen can be operated visually, and the staff can quickly grasp the operation and debugging. One
worker can manage several machines at the same time.
4,Improve product quality: accurate torque, convenient adjustment, and guarantee the quality of locking.
5. Stable performance, with leakage detection function, it will appear that individual screws have not been blown into place at a time, and can continue to blow or alarm processing to reduce product leakage of screws and increase product qualification rate.
Application
Suitable for all types of screws the total length of the screw should be greater than 1.3 times the diameter of the nut. Screws
with a total length of no more than 40mm can be fitted with removable gaskets.
Machine Structure | weight | 80kg |
size | 680*750*700cm | |
Working area | 200*400*100mm*2 | |
Power | 220/110V,50/60HZ | |
Air pressure | 0.4-0.6MPA | |
Material | made of aluminum profiles | |
Drive | Closed loop stepper motor and Hiwin guide rail | |
Feeder | Quantity | 2 PCS |
Feeding type | suction type | |
Screw size | M1-M6 | |
Screw driver | Brand | HHB or KILEWS |
Function | Torque detection | yes |
Slippery detection | yes | |
screw leakage detection | yes |
Screw feeder
Blowing type screw feeding method make it work fast .It is stable and have the screw counting function.
Screw driver
Brand HHB or KILEWS made in Taiwan
Brushless electric batch
It will stop automaticly when torque reach which protect the screw and products.
Applications
Factory Show
Exhibition
Certifications
Product packaging
FAQ
Pre-sale guide
Q:MOQ?
A:one set.
Q:can make it 110V?
A:YES.
Q:Can you ship it to my agent in China?
A:YES.
Q:Warranty?
A:One year.
Q:Lead time?
A:It need 5-7 days after payment receive.
Q:Do you accept credit card?Can we order it by alibaba?
A:Yes,credit card,Paypal are welcomed.Support buy machine from alibaba.
Q:Can you provide the tranportation for us?
A:Yes,provide shipping cost by express,by air and by sea for your option.
