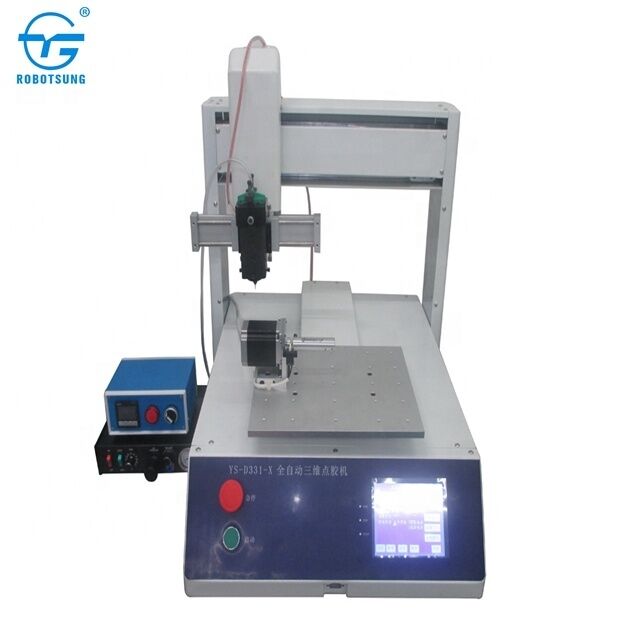

CNC Desktop Automatic Hot Melt Glue Spraying Machine for Paper Box
| Place of Origin | Guangdong, China |
| Brand Name | Robotsung |
CNC Desktop Automatic Hot Melt Glue Spraying Machine For Paper Box
Application
Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.
Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
Glue type
Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint,
Feature
1 English panel, easy operation.
2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
4. Satisfy high quality glue dispensing by adjusting the parameters of screw
5. Precise stepper motor, numerical control available
6. Applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
Specification
| Model number | YS-D331E |
| Working area(X/Y/Z area) | 300*300*80 |
| Max speed | 500mm/s |
| Resolution | 0.01mm |
| Repeatability |
+/-0.02-0.05mm |
| Display | 5.7' LCD display |
| Drive mode | micro stepping motor + precise linear guideway + belt |
| Power | 220V/50HZ 250W |
| Working enviroment | Temperature:5-40 degree. Humidity:20-90%RH |
| Size | 620*520*600 |
| Weight | 35KG |
All the picture show on the site are for your reference. Our product could match with other accessories (valve,tank,cartridge) according to your actual situation or as your request.
Shenzhen Robotsung Automation Technology Co., Ltd was incorporated in January 2001, now has offices in Shenzhen, Suzhou, Guangzhou, Chongqing and Qingdao, placed a leading role in China market for the automation equipment. Our products including Full automatic and semi automatic Screwdriver Machine, PCB cutting machine, SMD components counter, pipe cutting machine, Glue Dispenser and paste mixer.
Our company has a team of experienced system engineers, advanced programmers, circuit designers, precision machinery designers, structural engineers and mechatronics engineers. They are engaged in researching and developing the software and hardware of industry control system, have committed to the development, production, sales and service of new automation system and automation equipment. Now we have made outstanding achievement in CNC technology, automation control, equipment intelligent, remote monitoring and industry data network development.
To ensure quality, we have more than 15 QC members to carry out strict inspection at each stage: incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC). We have also introduced 10 sets of inspection machines, which allow us to make products meet international standards.
