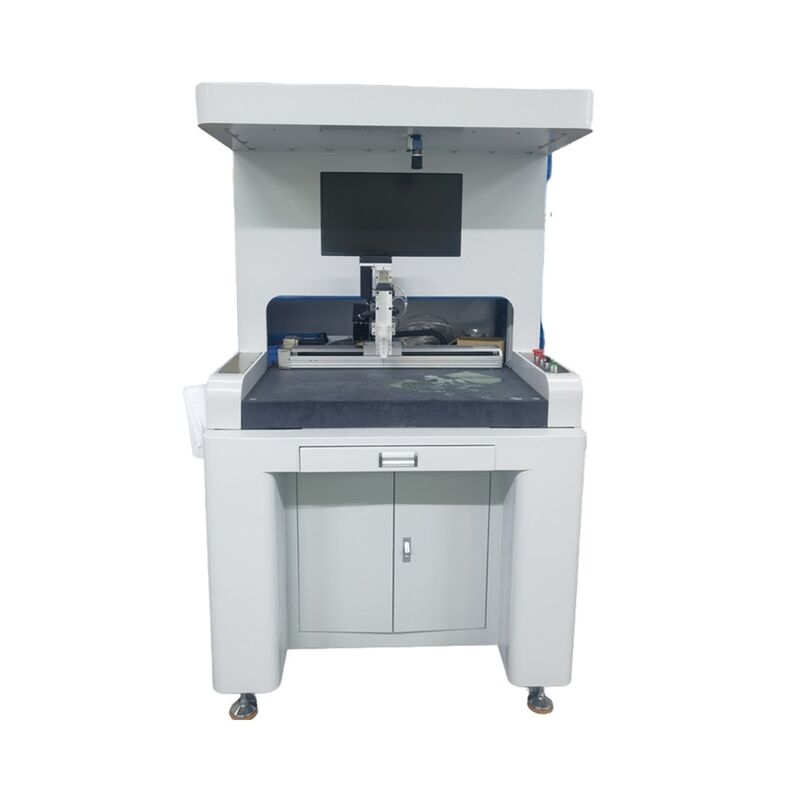

CCD Visual AB Glue Doming Machine Resin Glue Machine for Medals,stickers
Place of Origin:Guangdong, China
Brand Name:Robotsung
Minimum Order Quantity:1 set
Price:$8,000-10,000 / set
Product Details
Video Outgoing-Inspection:
Provided
Machinery Test Report:
Provided
Core Components:
Motor
Application:
Machinery & Hardware
Packaging Type:
Cartons
Packaging Material:
Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Dimension(L*W*H):
1100mm*1100*1850
Warranty:
1 Year
Key Selling Points:
Easy To Operate
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas
Type:
Automatic 3 Axis Glue Dispenser, Gluing Machine
Drive Mode:
Micro Stepping Motor
Max Dispensing Speed:
45k/H
Working Area(X/Y/Zmm):
400*300MM
Condition:
New, New
Applicable Industries:
Other
Showroom Location:
None
Warranty Of Core Components:
1 Year
Weight:
400 KG
Product Description
Applications
Specification
Machine name | Visual glue machine |
Size | 110*130*188cm |
Working area | 300*300*100mm |
Camera No. | 1 |
Visual size | 300*300mm |
Weight | 400KG |
Tank size | 30ml barrel,A/B TANK 5L,10L,20L for your option |
Mixing ratio | 1:1-10:1 adjustable |
Control system | PC |
Aire pressure | 0.5-0.8MPA |
Feature
1. No mold is required to fix the product, the product can be placed in any direction, one-time whole-board positioning mode, no need to scan individual products one by one, positioning the entire work platform only takes 2 seconds, saving a lot of scanning time and improving production efficiency.
2. Graphical programming software, the software operation is simple and easy to learn, new products only need about 5 minutes from positioning programming to dispensing production, saving a lot of programming time and improving production efficiency.
3. Dual-camera dual-working platform cyclic production, the equipment works uninterruptedly, saving intermediate loading and unloading time, and improving production efficiency.
4. Equipped with brand industrial control computers, imported Panasonic servo motors, and imported screws to ensure the operating accuracy of the equipment.
5. High-precision constant temperature control glue system, glue is not drawn, no glue is hung, and the glue output of each product is consistent.
6. Z-axis does not move non-contact dispensing mode, the dispensing product is completely non-contact with the dispensing head, improving the quality and efficiency of the dispensing product.
Details Images
Marble work surface, surface flatness +-0.05-0.1mm, can ensure the smoothness of glue dispensing
1200W industrial camera, fast positioning, high-definition imaging
The servo motor + screw rod form the running module, with a running speed of 500mm/s and a repeat positioning accuracy of +/-0.01mm
Precision metering pump, AB glue ratio accuracy +/-2%
