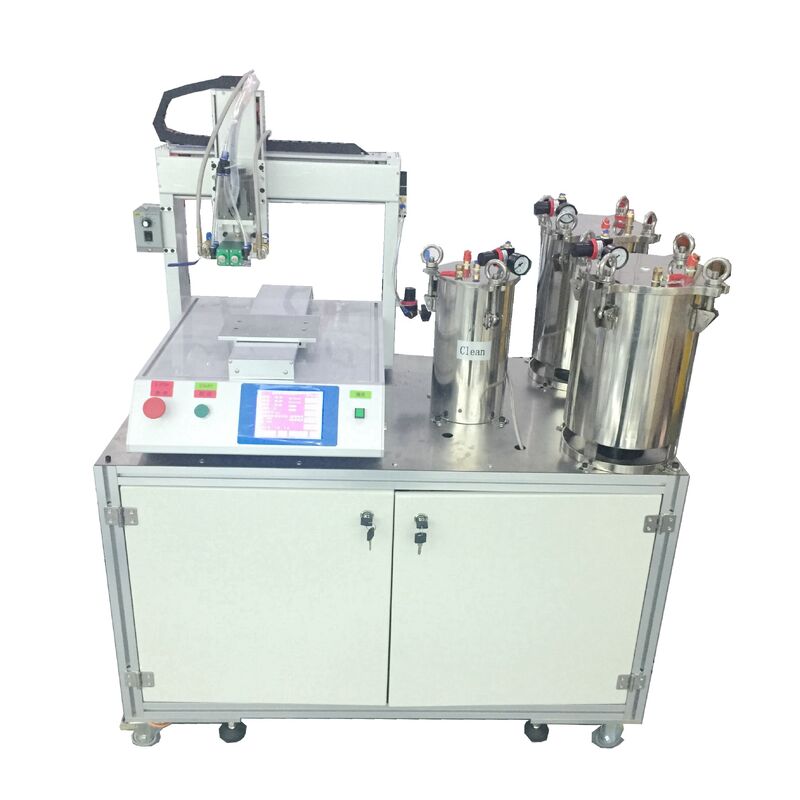

Two Components Resin Glue Dispensing Machine AB Glue Doming Machine
  • Two Components Resin Glue Dispensing Machine AB Glue Doming Machine
  • Two Components Resin Glue Dispensing Machine AB Glue Doming Machine
  • Two Components Resin Glue Dispensing Machine AB Glue Doming Machine
  • Two Components Resin Glue Dispensing Machine AB Glue Doming Machine
  • Two Components Resin Glue Dispensing Machine AB Glue Doming Machine
  • Two Components Resin Glue Dispensing Machine AB Glue Doming Machine

Two Components Resin Glue Dispensing Machine AB Glue Doming Machine

Place of Origin Guangdong, China
Brand Name Robotsung
Product Details
Weight (kg):
80
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
Motor
Warranty:
1 Year
Type:
AB Glue Dispensing Machine
Working Area X/Y/X:
300*300*60
XYZ Repeatability:
+/-0.01mm
Max Speed:
500mm/s
Minimum Glue Flow:
0.001ml
Control System:
Professional 3-axis Motor Control System
Input:
220V/50HZ 300W
Condition:
New
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops, Construction Works , Energy & Mining, Advertising Company
Showroom Location:
None
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$5,900-6,500 / set
Product Description
Product Overview

AB glue dispensing machine

Applicable glue:
Silicon, UV glue, AB glue, epoxy resin, instant glue, EMI conducting resin, sealant, hot glue, grease, red gum , solder paste,
thermal grease, solder grease, lacquer, screw fixing agent.
FEATURES AT A GLANCE
Features:
1.The floor-standing dispenser is suitable for large and heavy products such as doors and windows. The work surface can be
customized according to the product size, and the dispensing can be completed in one time to improve production efficiency.
2.Complete 3 axis and 4 axis doming.It can quickly dot, lines, circles and various irregular graphics on the product surface,
outer wall, vertical surface, gap, spherical surface.Precise positioning, precise control of glue, no drawing, no leaking, no
dripping.
3.Programme by PC or machine .Easy operate and high accuracy.
4.Big working table which can put many products,it is high efficient.
5.Can be equipped with some glue gun,working together and double provide production
6.Suitable for all viscosity glue,oil and other liquids.Tank can be provided as your requirements.
7.More than 20 years manufacturer with strong R&D and production ability, sound QC system and perfect after-sale service.
Robotsung has become a nationwide famous brand in China.

Two Components Resin Glue Dispensing Machine AB Glue Doming Machine 0
PRODUCT SPECIFICATIONS
Mixing ratio
1:1-1:10
Filling speed
0.5-15g
Accuracy
Glue quantity +/-2% Mixing ratio:+/-2%
Glue viscosity
<=20000CPS
Glue ratio
as glue weight
Programme method
Teach Programme
Mixing system
Dynamic or static mixing
A pump
Screw pump or gear pump
B pump
Screw pump or gear pump
PRODUCT CONFIGURATION
Two Components Resin Glue Dispensing Machine AB Glue Doming Machine 2
Motor
Two Components Resin Glue Dispensing Machine AB Glue Doming Machine 4
Deformer for your option
Two Components Resin Glue Dispensing Machine AB Glue Doming Machine 6
A tank,B tank and Clean tank
SALES AND SERVICE NETWORK
Two Components Resin Glue Dispensing Machine AB Glue Doming Machine 8
Successful Project
SIMILAR PRODUCTS
Two Components Resin Glue Dispensing Machine AB Glue Doming Machine 10
Two Components Resin Glue Dispensing Machine AB Glue Doming Machine 12
Two Components Resin Glue Dispensing Machine AB Glue Doming Machine 14
FAQ
Q1:Package? A1:Wooden case with foam. Q2:Warranty? A2:One year. Q3:Leadtime? A3:3-5 days after payment recevied. Q4:Payment? A4:Credit card,Paypal and Bank transfer.
