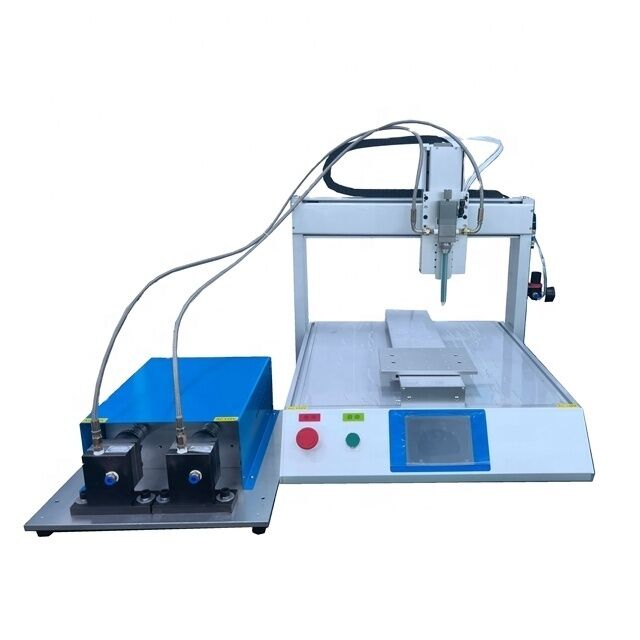

Shenzhen Robotsung YS-D461E 3d Sticker Machine,dome Epoxy Sticker Machine
|
Shenzhen Robotsung YS-D461E 3d Sticker Machine,dome Epoxy Sticker Machine
| Place of Origin | Guangdong, China |
| Brand Name | Robotsung |
Product Details
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
Motor
Application:
Chemical, Machinery & Hardware, Textiles
Packaging Type:
Cartons
Packaging Material:
Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220/110V
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Feature:
Automatic
Marketing Type:
New Product 2020
Type:
Gluing Machine
Applicable Industries:
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Energy & Mining, Advertising Company
Showroom Location:
None
Warranty Of Core Components:
1 Year
Condition:
New
Weight:
80 KG
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$4,800-4,900 / set
Product Description
Product Description
Product Application
Dispenser can be applied to the following areas:
1 Electro-acoustic industry: speakers, buzzers, audio, headphones
2 Small transformers, SMD transformers, relays, small coil motors.
3. Communications industry: the phone keypad, mobile phone casing bonding, radio, telephone, fax
4 Computers, digital products, digital elephant machine, MP3, MP4, electronic toys, chassis bonding
5 Switches, connectors, wire, plug cable
6 Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts fixed and dust and moisture protection, LCD liquid crystal screen, etc.
7 Optics: optical lenses, bald, head
8 Mechanical Hardware
9 Battery Box Sealed
10 Trademarks fixed bond
11.LED industry, widely used in LED industry, LED dispenser
Glue dispenser Specification | ||||||
YS-D331E | Working area(X/Y/Zmm) | Resolution 0.01mm | Drive mode Micro Stepping Motor | |||
300x300x100 | Repeatability +/-0.01mm | Power 220V /110V | ||||
Max. Speed 500mm/sec | Display 5.7’ LCD | Temperature:5-40 degrees Celsius | ||||
YS-D441E | Working area(X/Y/Zmm) | Resolution 0.01mm | Drive mode Micro Stepping Motor | |||
400x400x100 | Repeatability +/-0.01mm | Power 220V /110V | ||||
Max. Speed 500mm/sec | Display 5.7’ LCD | Temperature:5-40 degrees Celsius | ||||
YS-D551E | Working area(X/Y/Zmm) | Resolution 0.01mm | Drive mode Micro Stepping Motor | |||
500x500x100 | Repeatability +/-0.01mm | Power 220V /110V | ||||
Max. Speed 500mm/sec | Display 5.7’ LCD | Temperature:5-40 degrees Celsius | ||||
Main Features
1) Full automatic robot glue dispenser, 3 axis. Locate precisely.
2.) Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.3) Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.
4) Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.
5) Can be equipped with several heads for working at the same time to increase dispensing efficiency.
6 ) Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
7) Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
Certifications
Detailed Images
Machine Parts
Main Features
Name: Auto glie mixer
Mix AB glue automaticly as the ratio and feed glue to glue machine .
Machine Parts
Name: Glue Dispenser
Programme file by PC or machine
Material
Suitable for all kinds of stickers or labels,key rings or other decorations
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 300(L) * 300 (W) * 60 (D) | |
Weight | 60KG | |
Packaging Details | The normal package is wooden box(300(L) * 300 (W) * 60 (D)). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 400(L) * 600 (W) * 60 (D) | |
Weight | 60KG | |
Packaging Details | The normal package is wooden box(400(L) * 600 (W) * 60 (D)). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
