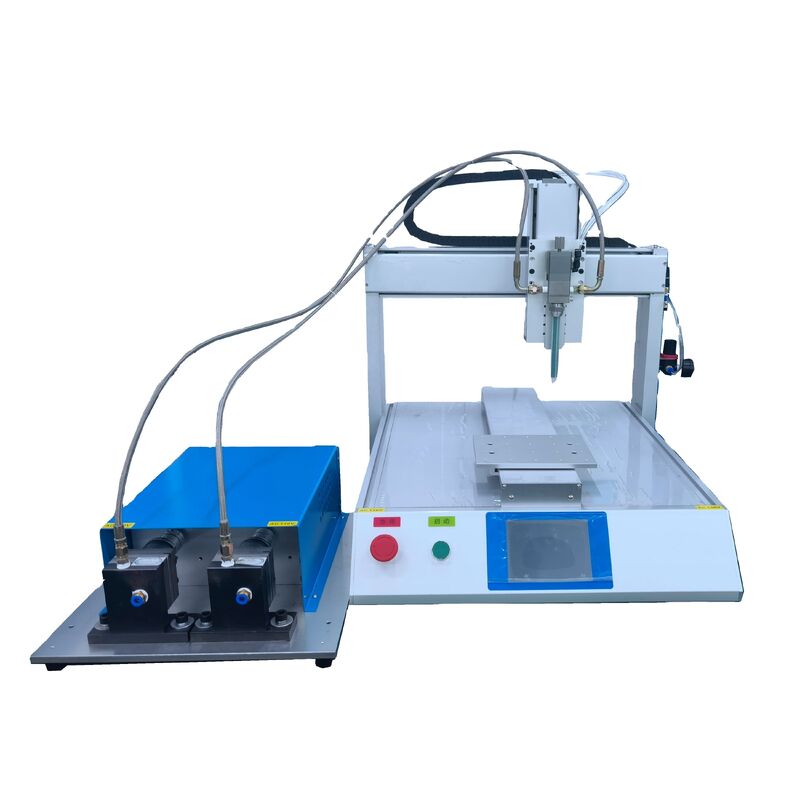

3 Axis ab Epoxy Machine,epoxy Doming Machine with Auto Glue Mixing System
3 axis ab epoxy machine,epoxy doming machine with auto glue mixing system
Application
Glue robot widely used in the industrial production, such as PCB Board,speaker,MP3,MP4,LCD Display,integrated circuits, printed circuit boards, electronic components, automotive parts, handbag, packing box etc.
Glue robot is suitable glue:UV glue,Silicone ,epoxy,red glue,AB glue,COB black glue, Conductive adhesive and so on.
Features
1.English touch panel, easy operation.
2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
4.The dispensing head set the micro touch switch, convenient operation; no air pressure, power can work.
5. Precise stepper motor, numerical control available
6.Apply three-axis robot to control the dispensing position to ensure high precision of glue dispensing
7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
8.Have air clean device,can gurrantee the material clean and dry.
Specification
1. Man-machine interface, easy to operate.
2. 3 axis movement
3. Reasonable price, high quality
4.1 year warranty
| Model | YS-D551E | YS-D331E |
| Work area(X*Y*Z) | 500*500*100mm | 300*300*100mm |
| Max. speed | 500mm/sec | |
| Resolution | 0.01mm | |
| Repeatability | ±0.01mm | |
| Operation interface | LCD touch panel/Handhold control box | |
| Drive mode | Micro stepping motor/belt | |
| Power | AC220V/110V 50-60HZ | |
| Size | 650*650*550mm | 460*450*480mm |
| Net weight | About 90kg | 70kg |
| Operation environment |
Temperature:5-40 degrees Celsius Humidity:20-90%RH |
|
Principle
Compress the glue into the feed pipe connected to Piston Chamber by conpressing air into the glue botton(injector). When the piston is in the upstroke, the piston chamber is filled with glue.And When the piston is pushed down, the glue is extruded from the needle nozzle.
AB glue mixer
Glue machine and AB glue mixer pictures:
Two gear pump for AB glue without fillers
Two Screw pump for AB glue with fillers
Floor type Glue machine for AB glue with fillers;
We can provide:
- Good quality carton packing
- Double check before shipping
- Safely Shipping method,such as DHL /FEDEX/TNT /UPS
- Air Freight, Ocean Freight or cargo forwarder service
Sales Focus:
- Quality Guarantee
( one year warranty for Electrical Screwdriver and two years for the motor)
- Good after-sales service
- Competitive price
- Widely range of products
- Convenient payment method
Why choose us?
1. We are manufacturer
2. Best price and considerate service
3. Fast delivery
4. All products are checked by Strictly QC department before shipping.
5. Flexible Payment Method: T/T, PayPal, West Union, etc.
