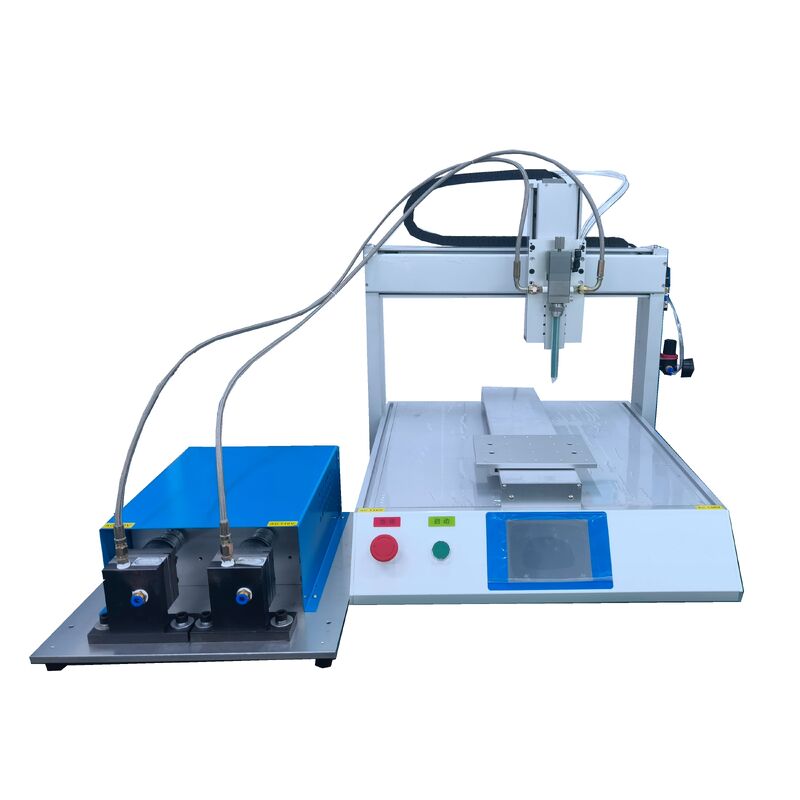

Desktop Automatic AB Glue Dispenser Robot Epoxy Resin Silicone Doming Sticker Machine
Desktop Automatic AB Glue Dispenser Robot Epoxy Resin Silicone Doming Sticker Machine
Application
Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.
Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
Glue type
Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint,
Feature
1 English panel, easy operation.
2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
4. Satisfy high quality glue dispensing by adjusting the parameters of screw
5. Precise stepper motor, numerical control available
6. Applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
Specification
|
Model |
YS-D331E |
|
Working area(X/Y/Zmm) |
300*300*100 |
|
Max. Speed |
500mm/sec |
|
Resolution |
0.01mm |
|
Repeatability |
+/-0.01mm |
|
Display |
5.7’ LCD |
|
Drive mode |
Micro Stepping Motor |
|
Power |
220V /110V |
|
Working enviroment |
Temperature:5-40 degrees Celsius Humidity:20-90%RH |
|
Size(L*W*H) |
460x450x480mm |
|
Weight |
70KG |
AB glue mixer
Glue machine and AB glue mixer pictures:
Two gear pump for AB glue without fillers
Two Screw pump for AB glue with fillers
Floor type Glue machine for AB glue with fillers;
Glue dispenser machine productions:
Products we have ever dome:
Glue dispenser machines:
All the picture show on the site are for your reference. Our product could match with other accessories (valve,tank,cartridge) according to your actual situation or as your request.
OEM/ODM service offered
We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.
Terms and conditions
Production lead time : 5-7 days
Payment terms:T/T in advance
other payment term can be discussed
Shipment term:Ex-work,or other shipping terms like FOB,CIF terms can be discussed.
