Quality High Precision Adhesive Dispenser Glue Machine Mobile Phone Touch Screen Frame Glue Machine factory

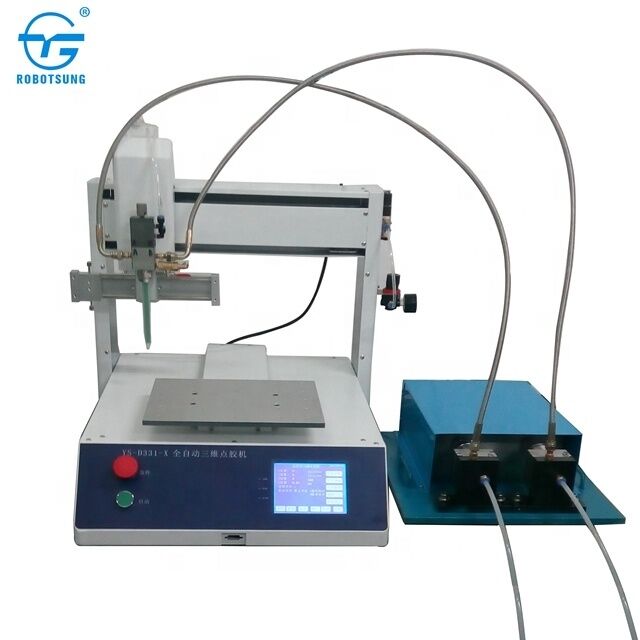

High Precision Adhesive Dispenser Glue Machine Mobile Phone Touch Screen Frame Glue Machine

Place of Origin:Guangdong, China

Brand Name:Robotsung

Certification:CE

Minimum Order Quantity:1 set

Price:$1,250-1,350 / set

Product Details

Video Outgoing-Inspection: Provided

Machinery Test Report: Provided

Core Components: Engine, Motor

Application: APPAREL, Chemical, Commodity, Food, Machinery & Hardware, Textiles

Packaging Type: Case

Packaging Material: Wood

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220V / 50Hz

Dimension(L*W*H): 460*450*480mm

Warranty: 1 Year

Key Selling Points: Automatic

Customized: YES

Model: YS-D331E

Material: Aluminum Alloy Metal

Machine Type: Automatic Control

Feature: Save Labor

Usage: Electronics

After Warranty Service: Online Support

After-Sales Service Provided: Video Technical Support

Type: Gluing Machine

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Advertising Company

Showroom Location: None

Warranty Of Core Components: 1 Year

Condition: New

Weight: 90 KG

Product Description

High precision adhesive dispenser glue machine mobile phone touch screen frame glue machine

Application:

Glue Dispensing Robot is widely used in the industrial production, such as PCB Board,speaker,MP3,MP4,LCD Display,integrated circuits, printed circuit boards, electronic components, automotive parts, handbag, packing box etc.

Glue Types:

Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint, etc.

Specifications:

Model	YS-D331E
Working area	300300100mm
Max. speed	500mm/sec
Resolution ratio	0.01mm
Repeatability	±0.01mm
Power	250W
Voltage	220V/110v 50-60Hz
Size	460450480mm
Weight	90KG
Operation environment	Temperature:5-40 degrees Celsius Humidity:20-90%RH
Customized	YES

Features:

1 English panel, easy operation.

2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.

3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.

4. Satisfy high quality glue dispensing by adjusting the parameters of screw

5. Precise stepper motor, numerical control available

6. Applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
