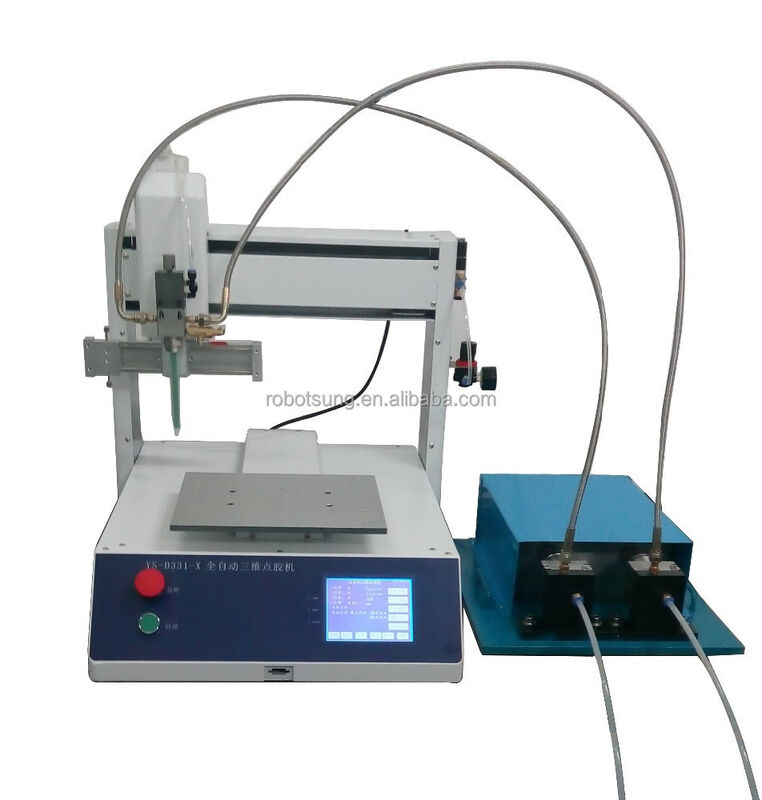

1.Model YS-D331E,working area 300*300*100mm.We also have bigger machine for your option.
2.Made of aluminum profiles.
Home
>
Products
>
Glue Dispenser Machine
>
Sticker Dome Machine Epoxy Resin Machine Epoxy Sticker Machine
|
Sticker Dome Machine Epoxy Resin Machine Epoxy Sticker Machine
| Place of Origin | Guangdong, China |
| Brand Name | Robotsung |
Product Details
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
Motor
Application:
Food, Commodity, Machinery & Hardware, APPAREL, Textiles
Packaging Type:
Case
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220/110V
Warranty:
1 Year
Key Selling Points:
Easy To Operate
After-sales Service Provided:
Online Support
Application:
Medical
Type:
Gluing Machine
Applicable Industries:
Printing Shops, Advertising Company
Showroom Location:
None
Warranty Of Core Components:
1 Year
Condition:
New
Weight:
110 KG(242.51lb)
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$3,500-3,600 / set
Product Description
Product Description
Glue dispenser Specification | ||||||
YS-D331E | Working area(X/Y/Zmm) | Resolution 0.01mm | Drive mode Micro Stepping Motor | |||
300x300x100 | Repeatability +/-0.01mm | Power 220V /110V | ||||
Max. Speed 500mm/sec | Display 5.7’ LCD | Temperature:5-40 degrees Celsius | ||||
YS-D441E | Working area(X/Y/Zmm) | Resolution 0.01mm | Drive mode Micro Stepping Motor | |||
400x400x100 | Repeatability +/-0.01mm | Power 220V /110V | ||||
Max. Speed 500mm/sec | Display 5.7’ LCD | Temperature:5-40 degrees Celsius | ||||
YS-D551E | Working area(X/Y/Zmm) | Resolution 0.01mm | Drive mode Micro Stepping Motor | |||
500x500x100 | Repeatability +/-0.01mm | Power 220V /110V | ||||
Max. Speed 500mm/sec | Display 5.7’ LCD | Temperature:5-40 degrees Celsius | ||||
Main Features
1) Full automatic robot glue dispenser, 3 axis. Locate precisely.
2.) Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.3) Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.
4) Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.
5) Can be equipped with several heads for working at the same time to increase dispensing efficiency.
6 ) Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
7) Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
Certifications
Detailed Images
Machine Parts
Main Features
Name: Auto glue mixer
A and B both are gear pump.No need tank.Pump glue from glue bottle directly.
Mix AB glue automaticly as the ratio and feed glue to glue machine .
Machine Parts
Support connect to PC.Accept .dxf file
Material
Suitable for all kinds of stickers or labels,key rings ,earrings ,name card or other decorations
Factory Show
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Product packaging
FAQ
Pre-sale guide
Q:MOQ?
A:one set.
Q:can make it 110V?
A:YES.
Q:Can you ship it to my agent in China?
A:YES.
Q:Warranty?
A:One year.
Q:Lead time?
A:It need 5-7 days after payment receive.
Q:Do you accept credit card?Can we order it by alibaba?
A:Yes,credit card,Paypal are welcomed.Support buy machine from alibaba.
Q:Can you provide the tranportation for us?
A:Yes,provide shipping cost by express,by air and by sea for your option.
