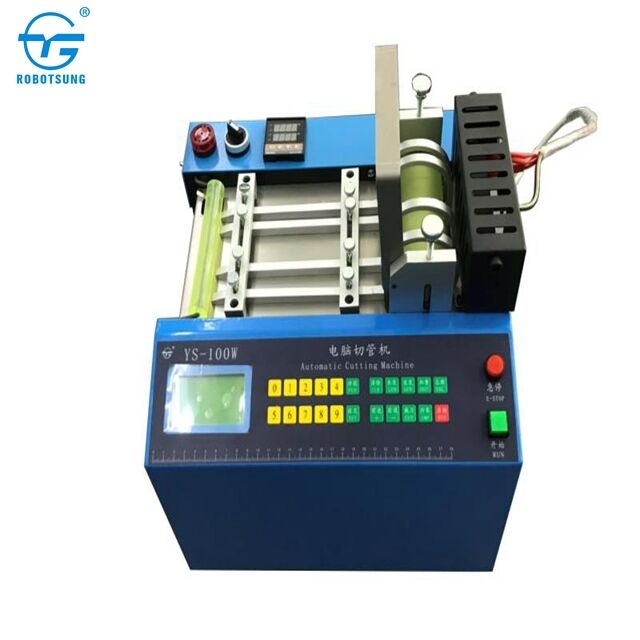

High Efficiency Hot Knife Cut Satin Ribbon Cutting Machine
High efficiency satin ribbon cutting machinery
Application
The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.
Tube: PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Teflon tube, corrugated tube, etc.
Cable: Flat cable, copper wire, etc
Tape: nickel strap, cotton tape, elastic band, plastic tape, zipper, conductive tape, foam, etc
Sheet: battery separator, Nickel sheet, diffuser sheet, plastic/rubber sheet, pvc sheet, etc
Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper, etc
------------------------------------------------------------------------------------
one machine suitable for cutting various kinds of materials
---------------------------------------------------------------------------------------------------------------------------------------
Features
1.High speed: It can cut 100~120 cut per minute. (50mm long)
2.Accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.
3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.
4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.
5.Automatic stopper: It stops automatically if materials run out during operation
6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on
7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.
8.High speed, high accuracy, designed for cutting non-adhesive materials.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Specification
Model: YS-100
1. Voltage: AC220V/50Hz & AC110V/60Hz
2. Power : 250W
3. Cut Length : 0.1-9999.9mm
4. Cut Width : 0-100mm
5. Cutting Thickness : 0-12mm
6. Dimension : L360*W300*H350MM
7. Net Weight : 28kg
8. Cut Speed:It depen on the cut length,from 50 PCS to 120PCS per minute
------------------------------------------------------------------------------------------------
Ordering information
|
Model No |
Cut Width |
Machine Size |
Net Weight |
Power |
|
YS-100, YS-100W |
0-100MM |
L360*W300*H350MM |
29kg |
250W/500W |
|
YS-120, YS-120W |
0-120MM |
L360*W320*H350MM |
30kg |
250W/500W |
|
YS-160, YS-160W |
0-160MM |
L360*W360*H350MM |
33kg |
250W/500W |
|
Model No |
Cut Width |
Machine Size |
Net Weight |
Power |
|
YS-200W |
0-200MM |
L360*W400*H350MM |
35kg |
500W |
|
YS-250W |
0-250MM |
L360*W450*H350MM |
40kg |
500W |
|
YS-300W |
0-300MM |
L360*W500*H350MM |
45kg |
500W |
PS: For cutting tubes, according to the diameter of the tubes, choose suitable machine.
YS-100: Cut tubes with diameter less than 13mm
YS-120WH: Cut tube with diameter less than 22mm
High efficiency satin ribbon cutting machinery
High efficiency satin ribbon cutting machinery
High efficiency satin ribbon cutting machinery
********************Shenzhen Robotsung Automation Technology Co.,Ltd**********************
17 years factory
Warehouse
Shipping & Package:
G.W:31kg Packing size:56*44*50cm
