YS-L602 Automatic Screwdriver Machine Automatic Tightening Screw Locking System
Place of Origin:Guangdong, China
Brand Name:Robotsung
Minimum Order Quantity:1 set
Price:$1,800-1,850 / set
Product Details
Weight (Kg):
55
Video Outgoing-Inspection:
Provided
Machinery Test Report:
Provided
Core Components:
Motor
Warranty:
1 Year
Power(W):
Other
Voltage:
Other
Suit For:
Various Screws
Noise:
Low
Customize:
YES
Application:
M1-M6 Screw Tightening
Usage:
Lock Screws Automatically
Material:
Aluminum Alloy
Feature:
Durable
Power Source:
Electricity
MOQ:
1set
Product Description
Product Description
Technical parameters
Screw capacity of feeding device : M2X6 5000PCS
Efficiency: 50-70PCS/MIN(Depends on screw length)
Voltage:220V/110V 50HZ/60HZ
Screw-feeding Speed : 0.5s/pc
Power: 30W
Air pressure: 2-3KGF
Weight: 40KG
Feeding device Size: 370*250*190MM
Noise: lower than 65dB
Conveying distance: 1-4Meters
Application:
1. Applicable screws: M2-M6.
2. Applicable Screw Head: for any universal type such as straight slot, cross, triangle, groove, trox, hexagonal, H head, etc.
3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.
4. Screw materials: iron, copper, stainless steel, etc.
5. Materials of products to be screwed: plastic, iron, aluminum, etc.
6. Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts and so on.
Structure

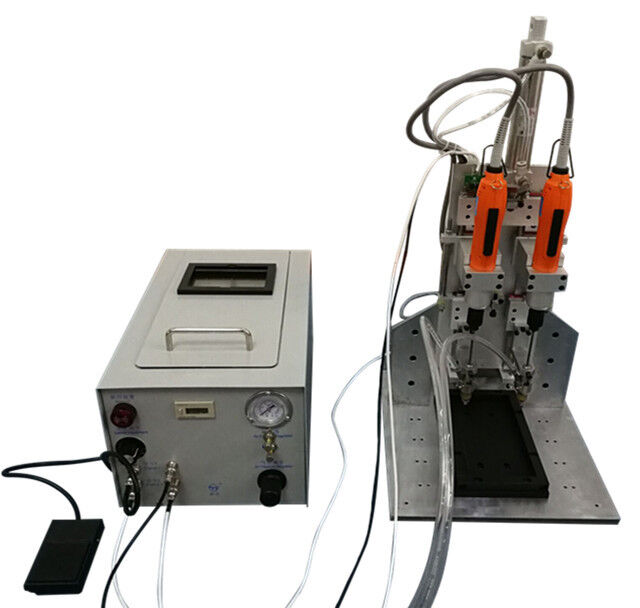

YS-L602 desktop screwdriver consists of feeding system, operating platform and screwdriver.
1. The feeding system line up and distribute the screws, and send the screw to electric screwdriver through pipe.
2. Operating platform. Use pedal to control electric screwdriver of up and down.
3. Electric screwdriver tightens the screw into product automatically.
4. YS-L602 desktop screwdriver machine only need putting product on platform by hand. And then step/press on pedal. Machine will tighten screw automatically. At last, take out the finished product and put the next one by hand.
Advantage
1. Convenient. Only need putting product on platform by hand. And then step on pedal. Machine will tighten screw automatically. At last, take out the finished product. It reduces the labor intensity greatly.
2. Fast. Save much time for moving hand, fetching screws, moving screws, positioning screws, etc. No need to wait.
3. Neat. No need to fetch screws by hand, thus won’t cause the secondary pollution of screws by stain or sweat. Screws are not easy to rust.
Compared with traditional handheld screwdriver machine
1. No need holding screwdriver by hand. It reduces the labor intensity.
2. No need positioning screw hole by hand. It saves working time better. Only need the jig to position screws.
3. Scope of application increased. YS-L602 desktop screwdriver machine apply to deep screw hole, big and heavy screws.
4. More favorable.
Screw capacity of feeding device : M2X6 5000PCS
Efficiency: 50-70PCS/MIN(Depends on screw length)
Voltage:220V/110V 50HZ/60HZ
Screw-feeding Speed : 0.5s/pc
Power: 30W
Air pressure: 2-3KGF
Weight: 40KG
Feeding device Size: 370*250*190MM
Noise: lower than 65dB
Conveying distance: 1-4Meters
Application:
1. Applicable screws: M2-M6.
2. Applicable Screw Head: for any universal type such as straight slot, cross, triangle, groove, trox, hexagonal, H head, etc.
3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.
4. Screw materials: iron, copper, stainless steel, etc.
5. Materials of products to be screwed: plastic, iron, aluminum, etc.
6. Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts and so on.
Structure
YS-L602 desktop screwdriver consists of feeding system, operating platform and screwdriver.
1. The feeding system line up and distribute the screws, and send the screw to electric screwdriver through pipe.
2. Operating platform. Use pedal to control electric screwdriver of up and down.
3. Electric screwdriver tightens the screw into product automatically.
4. YS-L602 desktop screwdriver machine only need putting product on platform by hand. And then step/press on pedal. Machine will tighten screw automatically. At last, take out the finished product and put the next one by hand.
Advantage
1. Convenient. Only need putting product on platform by hand. And then step on pedal. Machine will tighten screw automatically. At last, take out the finished product. It reduces the labor intensity greatly.
2. Fast. Save much time for moving hand, fetching screws, moving screws, positioning screws, etc. No need to wait.
3. Neat. No need to fetch screws by hand, thus won’t cause the secondary pollution of screws by stain or sweat. Screws are not easy to rust.
Compared with traditional handheld screwdriver machine
1. No need holding screwdriver by hand. It reduces the labor intensity.
2. No need positioning screw hole by hand. It saves working time better. Only need the jig to position screws.
3. Scope of application increased. YS-L602 desktop screwdriver machine apply to deep screw hole, big and heavy screws.
4. More favorable.
More Products
Company Profile
Certifications
Packing & Delivery
FAQ
1,Q: Why choose us? Competitive price and excellent quality,professional technical team with technical knowledge and solution will be provided whether you buy our products or not.
2,Q: How about your package? Carton or wooden case with foam 3,Q: How about your package? Carton or wooden case,depend on item weight or customer requirements, both carton and wooden case package is free. 4,Q: What is your guarantee and after-sales service? One year warranty for the machine All life maintain and service 5,Q:What’s the leading time? (How long do you need to prepare my goods?) 1-3 working days for sample orders 3-20 working days for bulk order (based on different quantities).
