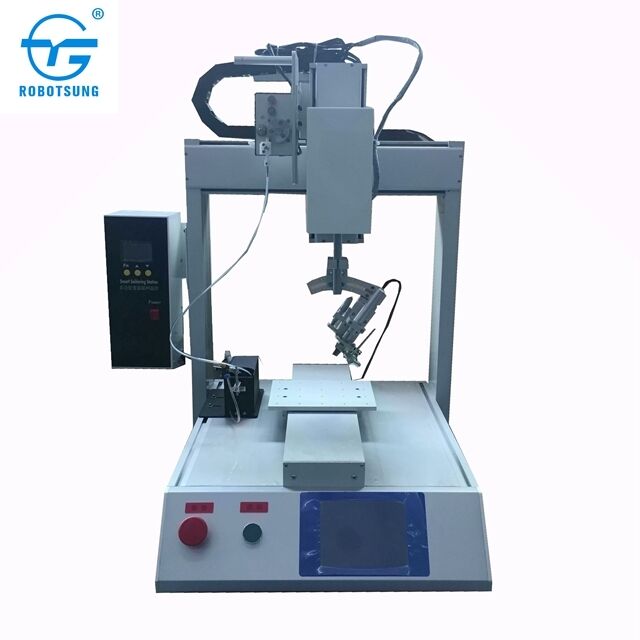

Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine
  • Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine
  • Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine
  • Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine
  • Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine
  • Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine
  • Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine

Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine

Place of Origin Guangdong, China
Certification CE
Product Details
Weight (KG):
95
Video Outgoing-inspection:
Provided
Machinery Test Report:
Not Available
Core Components:
Motor
Warranty:
1 Year
Head:
Single
Product Name:
Automatic PCB Soldering Machine
Power:
220V/110V
Soldering Iron Tip:
High Frequency Soldering Iron Tip
Soldering Material:
Tin Wire
Axis:
3
Control System:
Independent Research
Model:
YS-HX331E
Application:
Electronic Component Soldering
Condition:
New
Showroom Location:
None
Marketing Type:
Hot Product 2019
Warranty Of Core Components:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2,400-2,500 / set
Product Description
Product Overview

Automatic soldering machine

It is an automatic soldering machine by robot.The main parts of the soldering machine is the soldering system.It includes moving robot,auto solder feeding system,heating
part and Soldering iron tip.
FEATURES AT A GLANCE
Chinese/English input
With points, lines, arcs, circles, irregularly
curved continuous input program and any position welding
Solder feeding amount is adjustable
High-speed precision stepper motors
Adjust the temperature, time and the speed of
the tin
can preview edit tracks

Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 0
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 2
Right elevation
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 4
Left elevation
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 6
Front elevation
PRODUCT SPECIFICATIONS
Parameter
model
YS-HX331E
Size
671*551*612mm
Voltage
220V or 110V
air source
Clean 0.4-0.6 kpa
Temperature Control System
heating
vortex 200w-300w
temperature range
180-450℃
Number of irons
1
movement system
diver system
Step motor machine, Hiwin guide rail, timing belt
Servo motor for your option
movement stroke
300*300*300*100*360°
SALES AND SERVICE NETWORK
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 8
Successful Project
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 10
soldering wire on PCB
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 12
soldering pcb
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 14
soldering wire on lens
SIMILAR PRODUCTS
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 16
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 18
Pneumatic Soldering Machine Multi Flexible Wire Tinning Machine Factory Tin Welding Machine 20
FAQ
Q1：What is the warranty?
A1：One year
Q2: Package?
Q2: Wooden case with foam.
