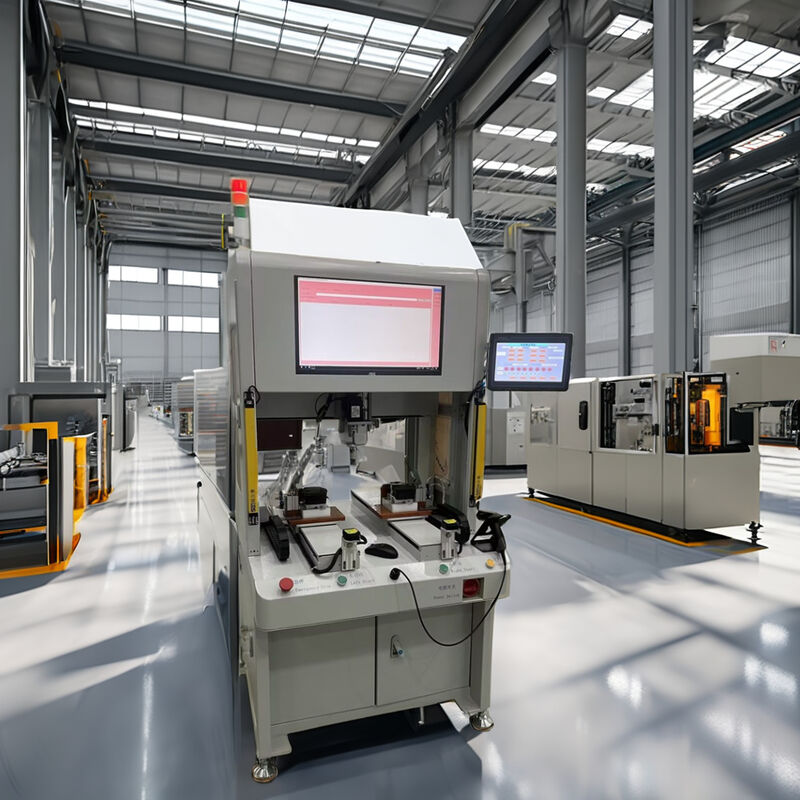

Automatic Double Tables High Efficient Screw Locking Machine,Lock Screw Machine
|
Automatic Double Tables High Efficient Screw Locking Machine,Lock Screw Machine
| Place of Origin | Guangdong, China |
| Brand Name | Robotsung |
Product Details
Weight (kg):
150
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
Motor
Warranty:
1 Year
After-sales Service Provided:
Online Support
Two Working Tables:
Yes
One Head Or Two Head:
For Your Option
One Feeder Or Two Feeder:
For Your Option
Screw Size:
M1-M6
Screw Length:
Below 35mm
Condition:
New
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Applicable Industries:
Advertising Company, Manufacturing Plant
Showroom Location:
None
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$5,500-5,800 / set
Product Description
Products Description
Advantages
1. Record each locking point torque
2. Scan the code to query the torque history
3. Report output
4. Wireless network, convenient for remote service and tracking
5. Remote version upgrade, remote operation
6. Safety light curtain to ensure the safety of people.
7. Switch between two workstations, people stop but the machine does not stop
8. Automatically scan product barcodes, accurate data without dispute
Operation
Employees only need to place the product on the fixture and press the start button on the corresponding side. The machine will
move to the scanning position, the fixture will automatically clamp and scan the current product QR code and upload it to the
industrial computer. At the same time, the locking work will start, and the locking will be carried out in sequence according to
the set locking positions. Each time a point is locked, the corresponding data will be recorded and saved on the industrial
computer. After the product on one side is printed, the product on the other side will be started, and the two sides will work
alternately.
2. Scan the code to query the torque history
3. Report output
4. Wireless network, convenient for remote service and tracking
5. Remote version upgrade, remote operation
6. Safety light curtain to ensure the safety of people.
7. Switch between two workstations, people stop but the machine does not stop
8. Automatically scan product barcodes, accurate data without dispute
Operation
Employees only need to place the product on the fixture and press the start button on the corresponding side. The machine will
move to the scanning position, the fixture will automatically clamp and scan the current product QR code and upload it to the
industrial computer. At the same time, the locking work will start, and the locking will be carried out in sequence according to
the set locking positions. Each time a point is locked, the corresponding data will be recorded and saved on the industrial
computer. After the product on one side is printed, the product on the other side will be started, and the two sides will work
alternately.
Machine Structure | weight | 120kg |
size | 750*750*1800cm | |
Working area | 250*300*100mm*2 | |
Power | 220/110V,50/60HZ | |
Air pressure | 0.4-0.6MPA | |
Material | made of aluminum profiles | |
Drive | Closed loop stepper motor and Hiwin guide rail | |
Feeder | Quantity | 1 PCS |
Feeding type | suction type or blowing type | |
Screw size | M1-M6 | |
Screw driver | Brand | Local brand or YAKO |
Function | Torque detection | yes |
Slippery detection | yes | |
screw leakage detection | yes |
Screw feeder
Suction type screw feeder or blowing type screw feeder for your option.
Servo Screw driver
Servo screw driver
Brand YAKO.
Each screw torque and speed are adjustable.
More stable than normal screw driver.
Applications
Factory Show
Exhibition
Certifications
Product packaging
FAQ
Pre-sale guide
Q:MOQ?
A:one set.
Q:can make it 110V?
A:YES.
Q:Can you ship it to my agent in China?
A:YES.
Q:Warranty?
A:One year.
Q:Lead time?
A:It need 5-7 days after payment receive.
Q:Do you accept credit card?Can we order it by alibaba?
A:Yes,credit card,Paypal are welcomed.Support buy machine from alibaba.
Q:Can you provide the tranportation for us?
A:Yes,provide shipping cost by express,by air and by sea for your option.
