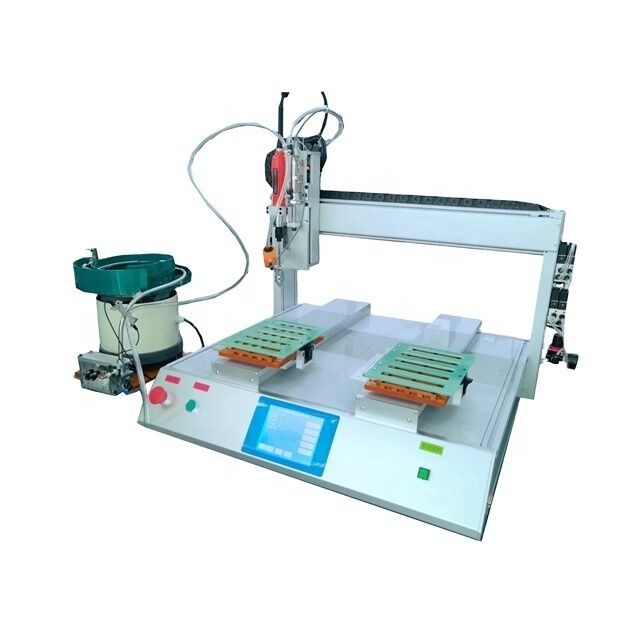

YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder
  • YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder
  • YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder
  • YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder
  • YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder
  • YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder
  • YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder

YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder

Place of Origin Guangdong, China
Brand Name Robotsung
Product Details
Weight (kg):
120
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
Motor
Warranty:
1 Year
Power(W):
0.36KW
Voltage:
220 V, 110 V, 220V / 110V
Product Name:
Automatic Screw Locking Machine
Application:
Automation Equipment
Keyword:
Automatic Screwdriver Machine
Advantage:
All The Screws Can Be Used On This Machine
Suitable For:
All Screws
Shipping:
DHL.TNT.FedEx.UPS.China Post. HongKong Post.EMS
Model:
YS-L542
MOQ:
1 Set
Table:
Two
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$3,600-3,800 / set
Product Description
Product Overview

SCREW MACHINE

Three-axis automatic screw locking machine, the employee puts the product into a universal adjustable jig, presses the start
button, the machine automatically locks the screw, wait for the screw.After the lock is completed, the operator removes the locked product and puts in the new product. Manually put the product into the fixture of the machine, press the start button one by one.The machine automatically locks the screws one by one. Take out the locked products and put them in the new products.
FEATURES AT A GLANCE
1,High efficiency, the blowing screw directly sends the screw to the batch nozzle, saving the time of taking the screw back and
forth, and the efficiency is higher and more stable
2,Reduce the labor intensity of workers. Workers only need to pick and place the product and the machine can automatically
complete the screwing, which greatly reduces the labor intensity
3,Simple operation. The display screen can be operated visually, and the staff can quickly grasp the operation and debugging. One
worker can manage several machines at the same time
4,Improve product quality: accurate torque, convenient adjustment, and guarantee the quality of locking

YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder 0
PRODUCT SPECIFICATIONS
Machine structure
Model
YS-L542
Power
360W
1
Weight
80KG
Rack
High quality aluminum profiles
2
Air source
0.4-0.6MPA
Drive mode
closed loop stepper motor+Hiwin guide rail
Control
Human-computer interface
LCD Display,5.7inch touch screen
Feeder
screw lead-in type
vibrating
Screw driver
Electric screw driver
HHB or Kilews or others
Test item
Screwdriver torque detection
yes
7
Screw sliding tooth detection
yes
8
Screw leak lock detection
yes
PRODUCT CONFIGURATION
YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder 2
Vibrating plate
YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder 4
Stepper motor
YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder 6
5.7inch LCD touch screen
SALES AND SERVICE NETWORK
YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder 8
Successful Project
YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder 10
Project in South Africa
YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder 12
Project in Russia
YS-L542 Automatic Screw Locking Machine With 304 Screw Vibratory Bowl Feeder 14
Project in Canada
FAQ
Q1:Pacakge?
A1:Will be shipped by carton box or wooden case with foam.
Q2: Leadtime?
A2:10-14 days after payment received.
Q3:Payment?
A3:Accept credti card,paypal and bank transfer.
Q4:Warranty?
A4:One year!In this year,parts can be provided for free except the easy wearing parts.
Q5:Factory?
A5;Yes.We build in 2001.Now All YS series machines in the market are out from our factory.
